Tuesday, 30 March 2010

Kitchen And Bedroom Ceiling

I have been working on the kitchen and bedroom ceiling the last couple of days.

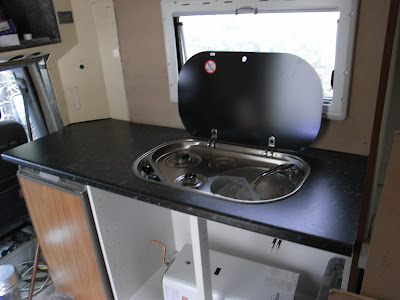

In the kitchen I have fitted the worktop and Smev combi sink / cooker.  You would think they would supply you with a template for the outrageous price of this item, but NO.  It's not difficult I know but............  Oh well.  Anyway its fitted now.  Not finally but dry for now.
I have also dry fitted the Morco hot water heater but for now its not on the wall. The hole for the flue is also cut and since then its done nothing but rain requiring a temporary blocking.  It can be seen in the bottom of the cupboard for now.

The wall covering is being fitted on Thursday.  I am using a very thin floor vinyl but won't be fitting that myself.  I have a very good carpet fitter friend that going to do this for me.  So in preparation I have fitted the bedroom roof.

This is quite difficult to photograph as I only have a 28mm lens.  Hopefully you will get the idea. This is the product  Linky  I am very pleased with it, and it looks great.  It has been glued in with Sicaflex 211.  As I hadn't used this product before I did a test with this and silicone adhesive.  I DA'd the surface with 40 grit and did a sample of each overnight.  Sicaflex won.

Saturday, 27 March 2010

Extensions To Everything It Seems

I have been on the motorhome project all this week as time allowed

The ambulance body has one huge problem when it comes to fitting anything standard off the shelf.  Off the shelf windows and roof fittings seem to work on the assumption you are going to fit their products into parallel bodies that are between 25 and 40mm thick.  So if you are doing an ambulance neither of these apply.

The theme of the week has been fitting Seitz windows, Fiamma roof vent and the locker door for the toilet.

Here are some pictures of the problem.

 Look at the taper top to bottom and the gap to be bridged

The solution I decide on was this.  There is a wonderful product called Foamex (Best link I could find) used mainly in the sign making industry.  It cuts easily with a Stanly knife and is generally an easy material to work with.  In this instance I have made an extended frame and covered it with mat black vinyl as used in sign writing.  (additional photo of installation to come).

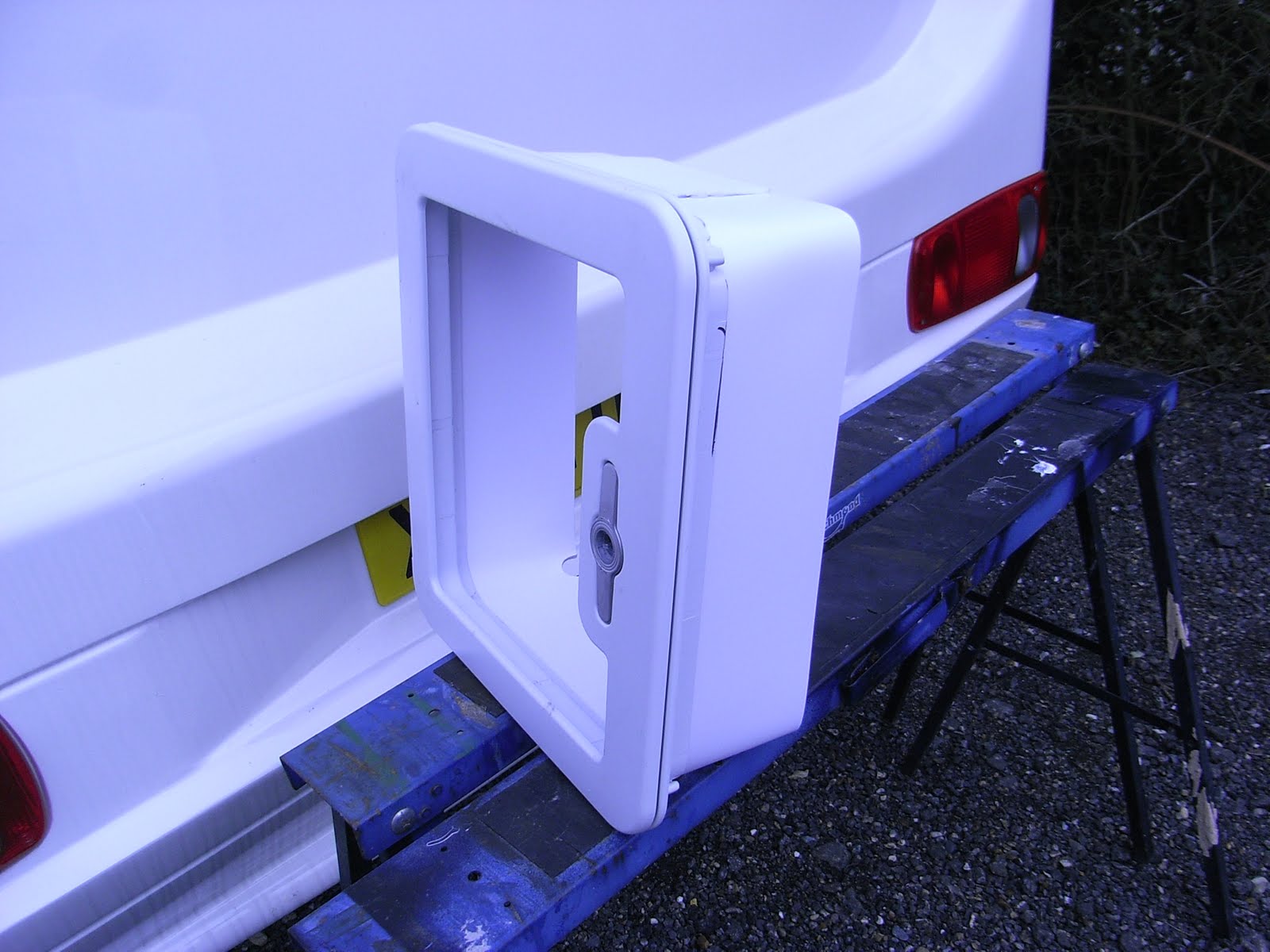

Next problem was the toilet door.  At this point the body is really flaring.  The inside is the square side its the outer skin that gets wider.

I used expanding foam to lock the inner and outer skins together and provide some insulation.  By now the body is about 90mm thick whereas at the top its only around 35mm.  So this gap need bridging.  Fortunately the toilet door comes with a channel which was convenient for use to accommodate my friend Foamex.

As Foamex is a PVC based product its easily heat molded and shaped.  A piece 120mm wide was used to bridge the gap in the body.  The curved corners were formed using a hot air gun.

In the previous entry I fitted the N/S locker door, I have since fitted the O/S one as well.  I have also dressed the gap with GRP faced ply.  This is used extensively in the truck and trailer body building industry.  Linky  Fortunately I have a fair bit of this left from my trailer manufacturing business in the form of off cuts.

The same problem was solved with a different material for the bathroom roof vent.  Go back a bit and you can see the thickness of the roof.  I couldn't use Faomex on this as the fan runs too close so instead I used white polyester coated steel .8mm thick this was hand folded around a metal pole and inserted in the inner frame and then glued into place.

  The gap is for the fittings on the opener

Here it is fitted. The fly screen will hide the edges

Friday, 19 March 2010

Locker Door Fitting

Less than a week ago I ordered some lockers form this firm Linky  I have to say the quality, design, price and service are absolutely brilliant.  I would throughly recommend them.

So gushing over.  Heres how I did it.  From the inside I marked where I wanted the center of the door. As I wanted the door flush with the floor inside but need to make the initial cuts from the outside, I drilled a small pilot hole 2" above the floor in the center where I wanted the door to fit.  It was then simple to work from this datum to mark out the hole to be cut. The door is 20" x 24" (WxH) and there will be another on the other side.  The reason for not drilling at the floor level is because the body of the drill will force the drill bit to aim downwards ending up below the floor line outside.

Outer skin removed to reveal yet more stainless steel

I am now using a 9" angle grinder with a thin cutting disk for stainless to cut all the holes in the body.  It is quicker and neater than a jig saw.
Hole now cut easily with the 9" grinder

As the door is going to be glued in place so its necessary to rough up the surfaces to be glued.  A light sanding with a small grinder is all thats needed, then I clean the surfaces with meths just make sure there is no dust or oily surfaces left.

Finally the very nice door fitted

Extended Nozzle

After a bit of head scratching I came up with this to solve this problem See earlier post.

2 standard nozzles and a bit of reinforced tube

 With a stiff wire reinforcement bound in insulating tape

This got into the narrow gap just fine.  It was a bit difficult to steer and very hard to squeeze but a decent job was achieved in the end.

Wednesday, 17 March 2010

Window Fitting

The windows I ordered arrived yesterday so today I started fitting them.

I started with the roof light in the shower room.

Because of the room size and various bit of steel structure in the body this was the biggest unit I could use.  It does let in more than enough light though.  The roof is too thick, as you can see in the photos below, to take the unit as its designed to fit a maximum thickness of 85mm so I will have to make an adaption.  More on that later.

So on to fitting the kitchen window.  As usual now when ever I cut a hole in the body I seem to find a whacking great lump of stainless steel in the way.  So with the hole cut and the stainless removed I was relatively straight forward to fit the window.

I then cut the hole for the O/S bedroom window. Again SS in the way.  On offering up the window its become apparent the inside and outside skins are not as parallel as the kitchen window was and this is going to make fitting this window more difficult.  The kitchen window was the same but the taper difference is less and there was more give to enable me to pull it all parallel.  To better understand, at the bottom of the windows the inner and outer skins get wider apart.

I have posted on the SBMCC forum to see if anyone has a good and neat solution for this.

Thursday, 11 March 2010

I Need A Stiff Drink

Today I ordered  4 Seitz windows, a motorized roof vent, and 2 locker doors.

That saw of a grand!

Now wheres that drink?

Wednesday, 10 March 2010

I Have Kinda Boxed Myself In

I have been installing the shower room and toilet of late.  I have been doing it one wall at a time.  Now the 3rd wall is in I have a problem in sealing the wall to the rear wall and shower tray.  The gap is to tight to to get the gun in and my finger to finish it.

I have a plan that involves 2 nozzels a length of tube, a stick and a plastic washer.   Watch the next blog to see if it worked.
